Sandvik Coromant

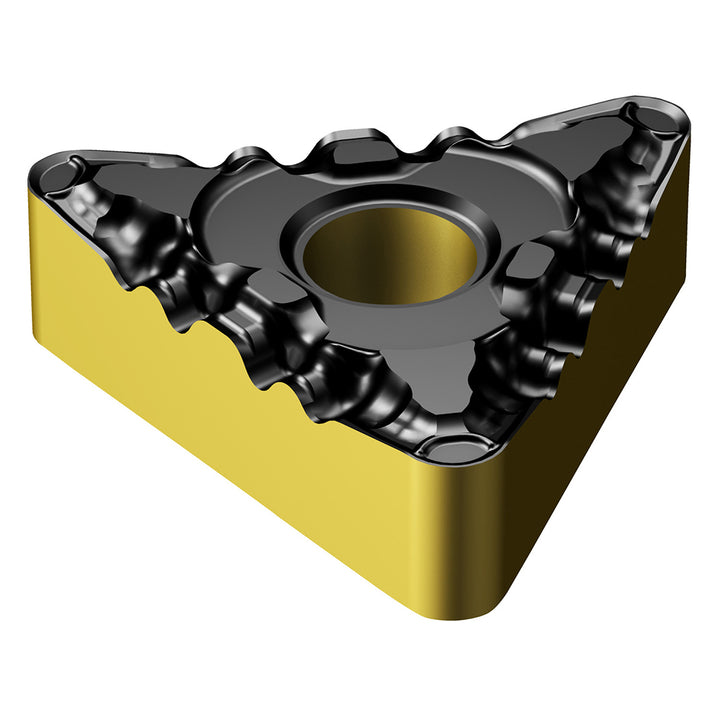

TNMG 16 04 04-PF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860561
MFR# 7860561ISO/ANSI# TNMG 16 04 04-PF 4415Cat# TNMG 331-PFSeries T-Max P
$18.47List $23.27
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860561 is a TNMG 16 04 04-PF 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.1500
Included angle60
Industry standard numberTNMG 16 04 04-PF 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1604
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 04-PF 4415
Manufacturers catalog numberTNMG 331-PF
Manufacturer grade4415
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
