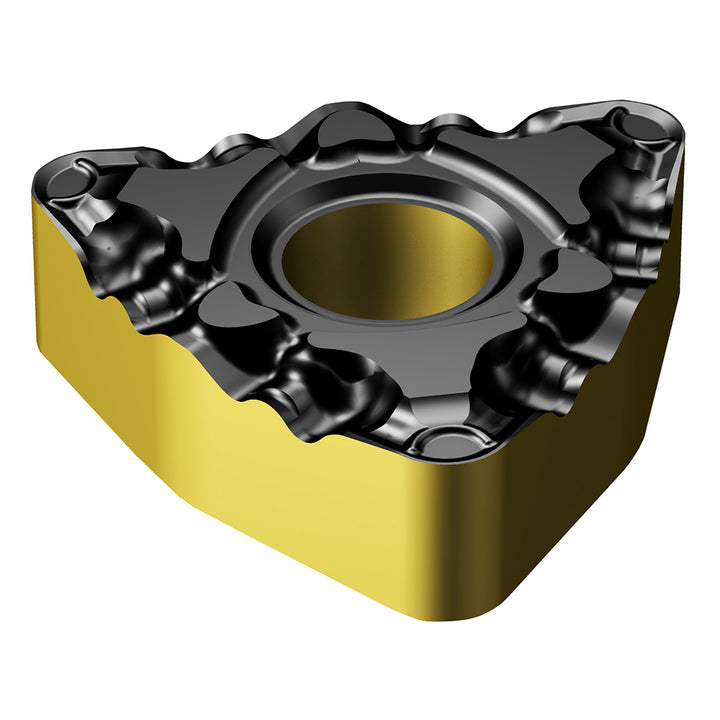

WNMG 06 04 04-PF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860569

Sandvik Coromant

WNMG 06 04 04-PF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860569

MFR# 7860569ISO/ANSI# WNMG 06 04 04-PF 4415Cat# WNMG 331-PFSeries T-Max P

$17.10List $21.55 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
Grade4415
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7860569 is a WNMG 06 04 04-PF 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.

Specifications

Chip breakerPF
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.1500
Included angle80
Industry standard numberWNMG 06 04 04-PF 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code0604
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 04-PF 4415
Manufacturers catalog numberWNMG 331-PF
Manufacturer grade4415
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
