Sandvik Coromant

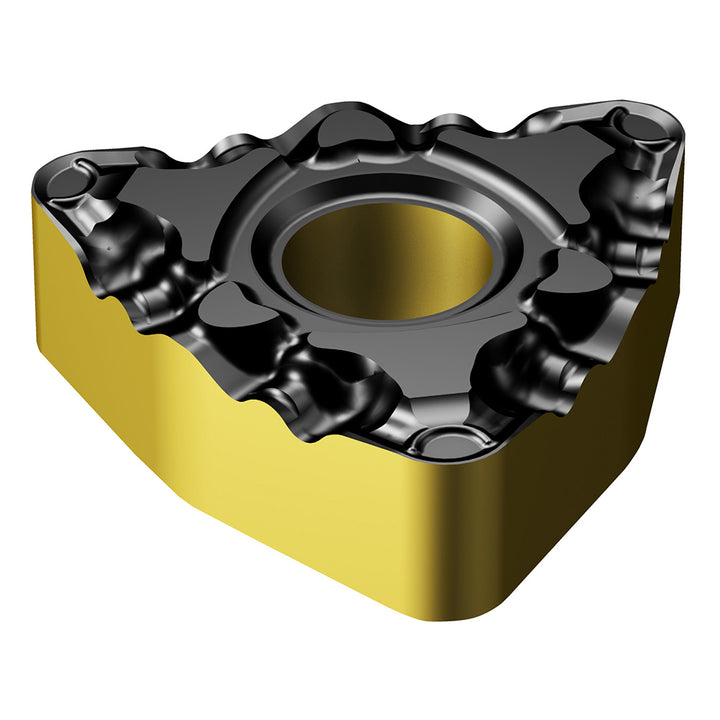

WNMG 06 04 12-PF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860571
MFR# 7860571ISO/ANSI# WNMG 06 04 12-PF 4415Cat# WNMG 333-PFSeries T-Max P
$16.42List $21.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860571 is a WNMG 06 04 12-PF 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle80
Industry standard numberWNMG 06 04 12-PF 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code060412
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 12-PF 4415
Manufacturers catalog numberWNMG 333-PF
Manufacturer grade4415
Relief angle0
Tolerance codeM
