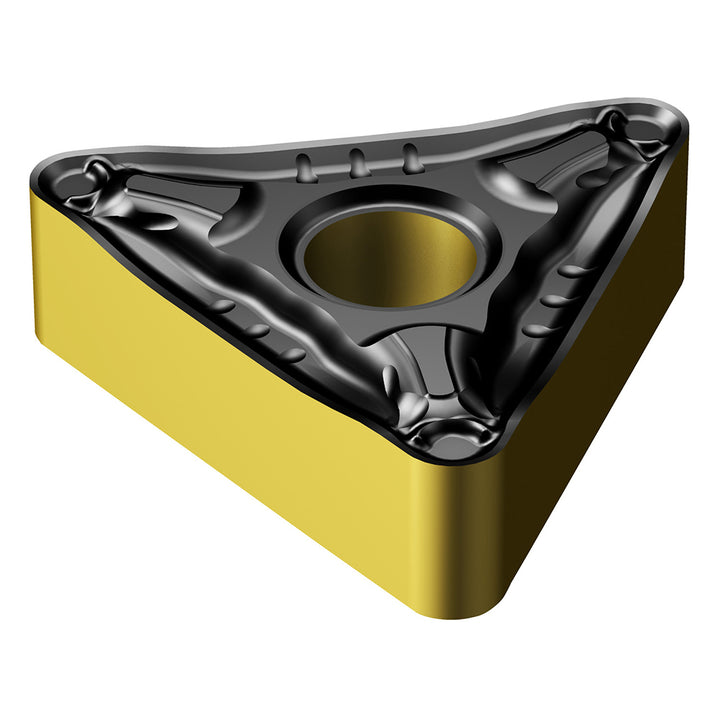

TNMG 22 04 08-PM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860576

Sandvik Coromant

TNMG 22 04 08-PM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860576

MFR# 7860576ISO/ANSI# TNMG 22 04 08-PM 4415Cat# TNMG 432-PMSeries T-Max P

$23.45List $29.55 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7860576 is a TNMG 22 04 08-PM 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.

Specifications

Chip breakerPM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle60
Industry standard numberTNMG 22 04 08-PM 4415
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code2204
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 08-PM 4415
Manufacturers catalog numberTNMG 432-PM
Manufacturer grade4415
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
