Sandvik Coromant
TNMX 16 04 04-WF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860584
MFR# 7860584ISO/ANSI# TNMX 16 04 04-WF 4415Cat# TNMX 331-WFSeries T-Max P
$21.14List $27.12
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade4415
MaterialCarbide
CoatingAl2O3
Description

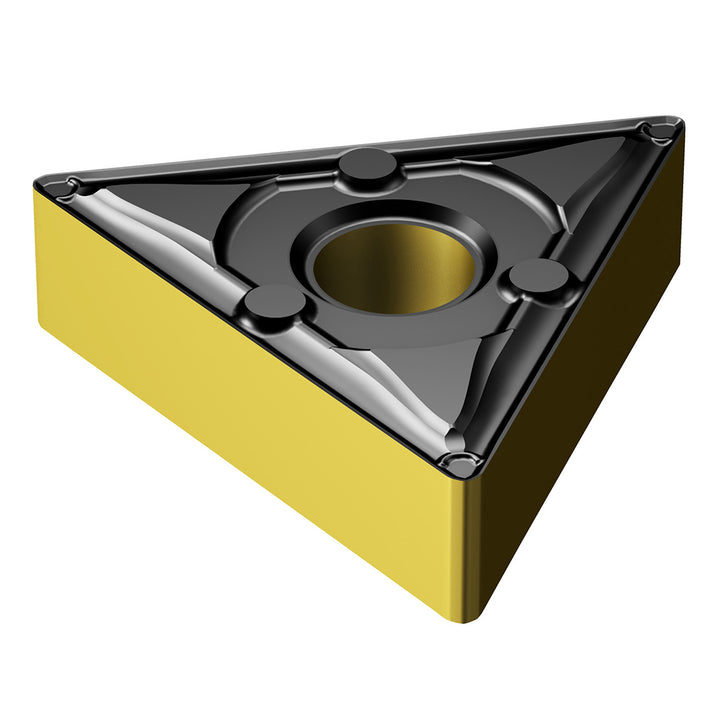

The Sandvik Coromant 7860584 is a TNMX 16 04 04-WF 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Included angle60
Industry standard numberTNMX 16 04 04-WF 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code160404
Insert styleTNMX
Insert thickness in3/16
Iso codeTNMX 16 04 04-WF 4415
Manufacturers catalog numberTNMX 331-WF
Manufacturer grade4415
Relief angle0
Tolerance codeM
