DNMX 15 04 16-WM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860601
MFR# 7860601ISO/ANSI# DNMX 15 04 16-WM 4415Cat# DNMX 434-WMSeries T-Max P
$27.20List $34.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description

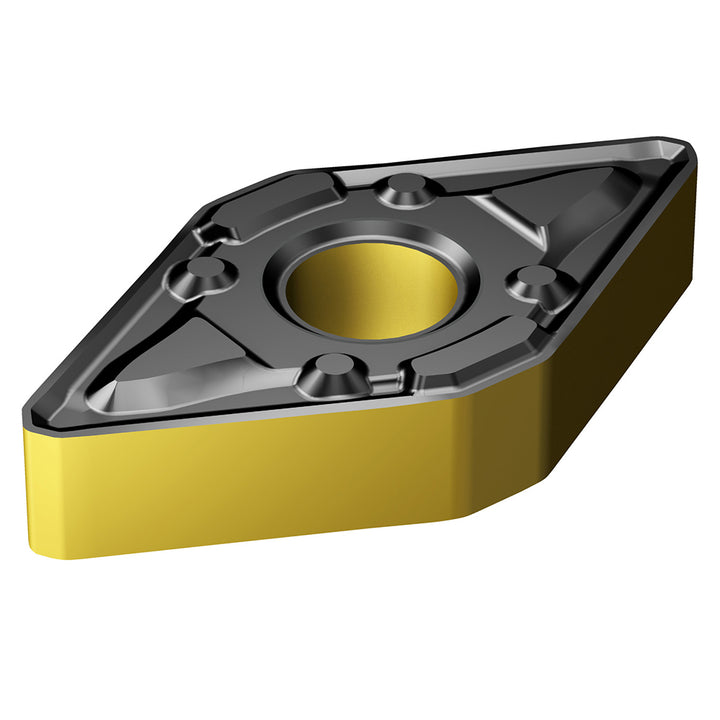

The Sandvik Coromant 7860601 is a DNMX 15 04 16-WM 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Included angle55
Industry standard numberDNMX 15 04 16-WM 4415
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code150416
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 15 04 16-WM 4415
Manufacturers catalog numberDNMX 434-WM
Manufacturer grade4415
Relief angle0
Tolerance codeM
