Sandvik Coromant

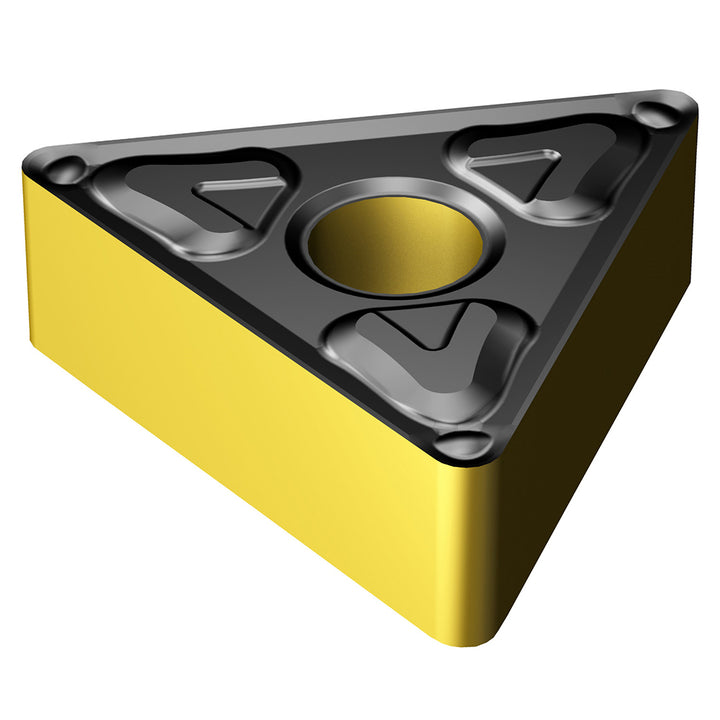

TNMG 16 04 08-XF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860610
MFR# 7860610ISO/ANSI# TNMG 16 04 08-XF 4415Cat# TNMG 332-XFSeries T-Max P
$16.71List $21.06
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860610 is a TNMG 16 04 08-XF 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Included angle60
Industry standard numberTNMG 16 04 08-XF 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code160408
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 08-XF 4415
Manufacturers catalog numberTNMG 332-XF
Manufacturer grade4415
Relief angle0
Tolerance codeM
