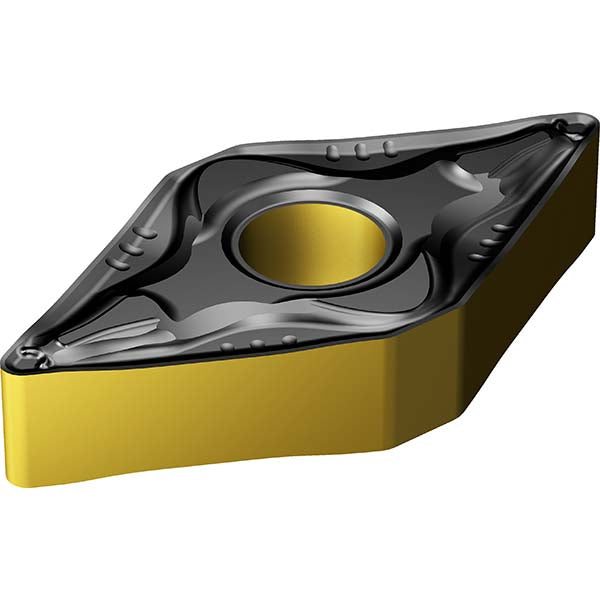

DNMG 15 06 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860711

Sandvik Coromant

DNMG 15 06 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860711

MFR# 7860711ISO/ANSI# DNMG150608Cat# DNMG 442-PM 4425Series T-Max P

$26.40List $33.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade4425
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 7860711 is a DNMG 15 06 08-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.

Specifications

Ansi insert codeDNMG442
Ansi size code442
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code1506
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 08-PM 4425
Iso insert codeDNMG150608
Iso size code150608
Manufacturers catalog numberDNMG 442-PM 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
