Sandvik Coromant

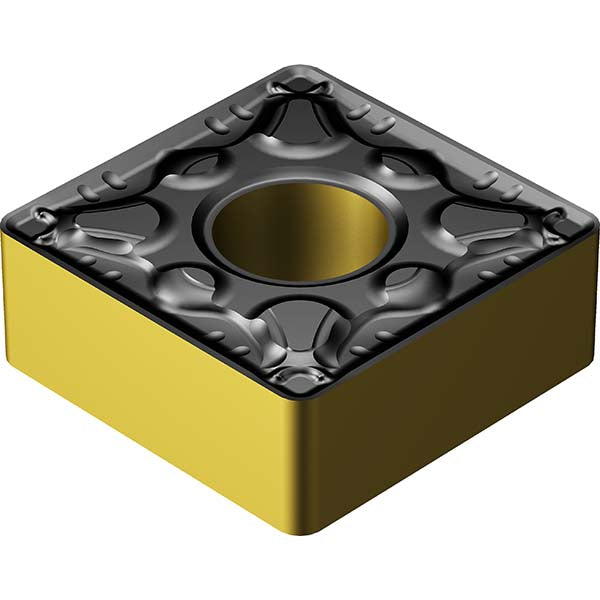

SNMG 09 03 04-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860714
MFR# 7860714ISO/ANSI# SNMG 09 03 04-PM 4425Cat# SNMG 321-PM 4425Series T-Max P
$12.75List $16.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860714 is a SNMG 09 03 04-PM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code0903
Insert styleSNMG
Insert thickness in1/8
Iso codeSNMG 09 03 04-PM 4425
Manufacturers catalog numberSNMG 321-PM 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
