Sandvik Coromant

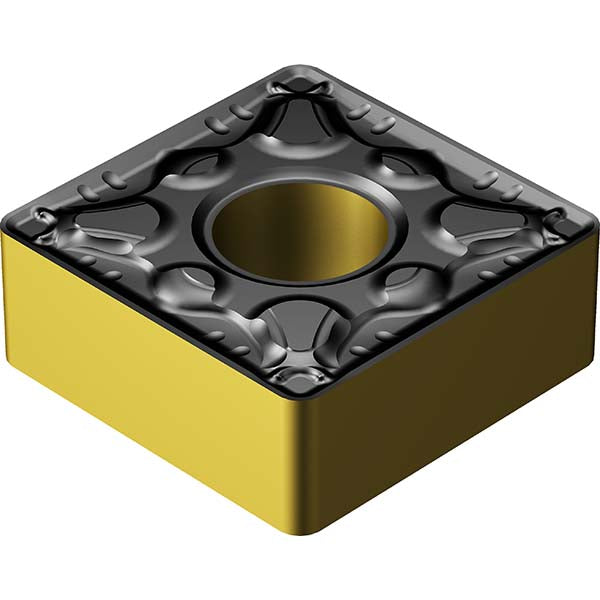

SNMG 12 04 16-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860719
MFR# 7860719ISO/ANSI# SNMG 12 04 16-PM 4425Cat# SNMG 434-PM 4425Series T-Max P
$18.70List $23.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860719 is a SNMG 12 04 16-PM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1204
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 16-PM 4425
Manufacturers catalog numberSNMG 434-PM 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
