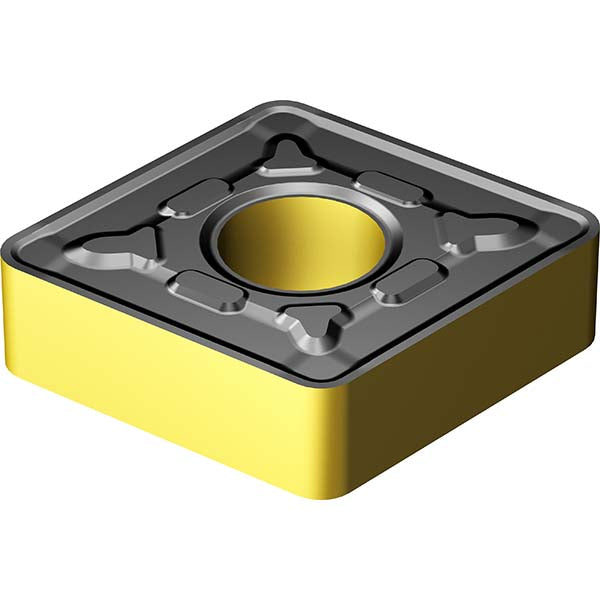

CNMG 16 06 12-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860725

Sandvik Coromant

CNMG 16 06 12-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860725

MFR# 7860725ISO/ANSI# CNMG160612Cat# CNMG 543-PR 4425Series T-Max P

$30.30List $38.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade4425
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 7860725 is a CNMG 16 06 12-PR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCNMG543
Ansi size code543
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code1606
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 12-PR 4425
Iso insert codeCNMG160612
Iso size code160612
Manufacturers catalog numberCNMG 543-PR 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
