Sandvik Coromant

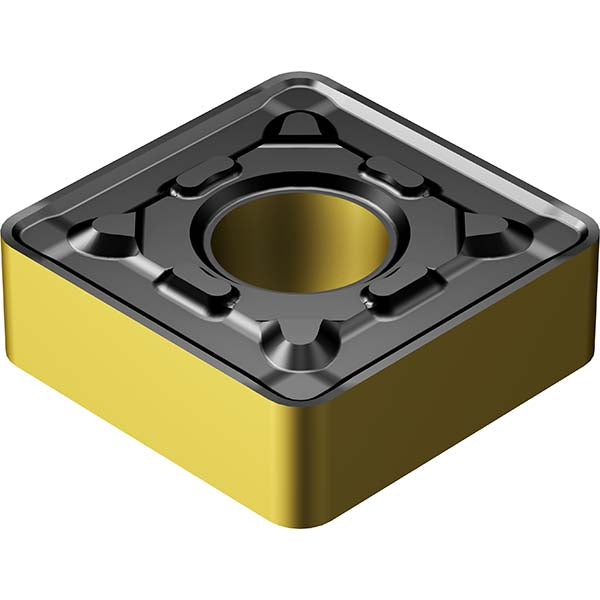

SNMG 12 04 16-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860753
MFR# 7860753ISO/ANSI# SNMG 12 04 16-PR 4425Cat# SNMG434PR4425Series T-Max P
$20.67List $26.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860753 is a SNMG 12 04 16-PR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Hole diameter0.2030
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1204
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 16-PR 4425
Manufacturers catalog numberSNMG434PR4425
Manufacturer grade4425
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
