Sandvik Coromant

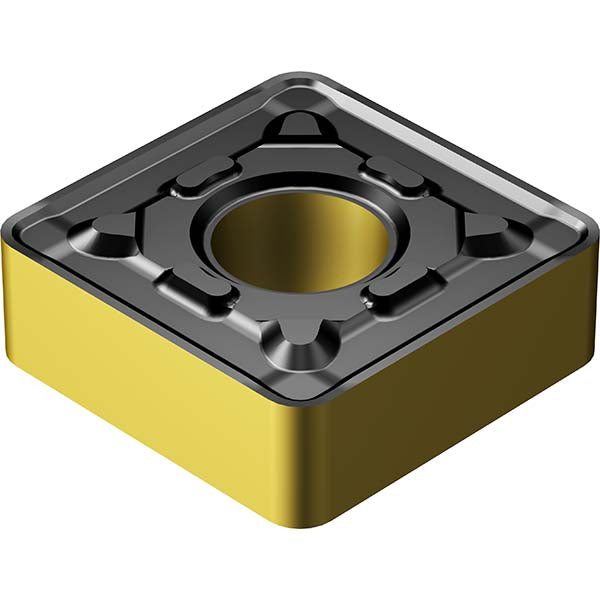

SNMG 15 06 16-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860756
MFR# 7860756ISO/ANSI# SNMG 15 06 16-PR 4425Cat# SNMG 544-PR 4425Series T-Max P
$30.16List $38.02
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860756 is a SNMG 15 06 16-PR 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1506
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 15 06 16-PR 4425
Manufacturers catalog numberSNMG 544-PR 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
