Sandvik Coromant

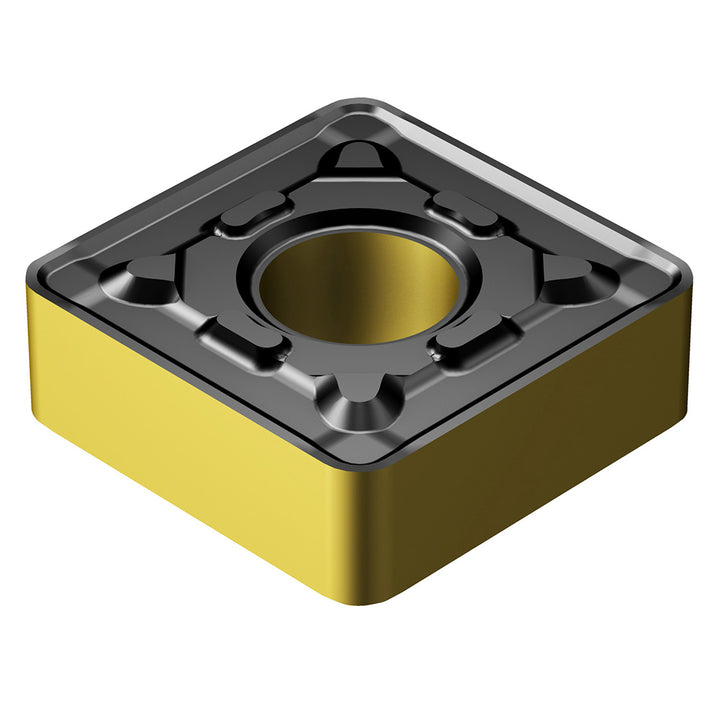

SNMG 19 06 16-PR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7860759
MFR# 7860759ISO/ANSI# SNMG 19 06 16-PR 4425Cat# SNMG 644-PRSeries T-Max P
$38.36List $49.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860759 is a SNMG 19 06 16-PR 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Hole diameter0.3120
Industry standard numberSNMG 19 06 16-PR 4425
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1906
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 16-PR 4425
Manufacturers catalog numberSNMG 644-PR
Manufacturer grade4425
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
