Sandvik Coromant

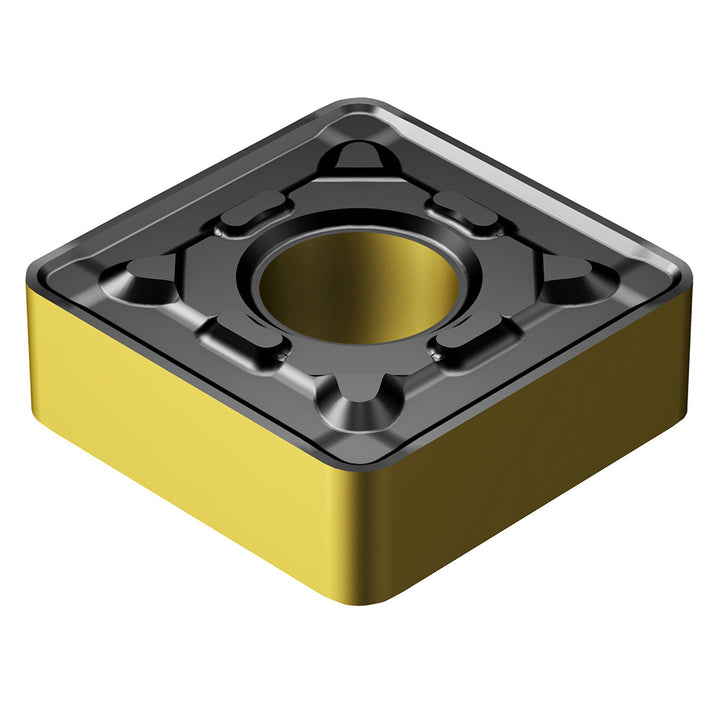

SNMG 19 06 24-PR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7860760
MFR# 7860760ISO/ANSI# SNMG 19 06 24-PR 4425Cat# SNMG 646-PRSeries T-Max P
$46.85List $59.04
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860760 is a SNMG 19 06 24-PR 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0938
Industry standard numberSNMG 19 06 24-PR 4425
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code190624
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 24-PR 4425
Manufacturers catalog numberSNMG 646-PR
Manufacturer grade4425
Relief angle0
Tolerance codeM
