Sandvik Coromant

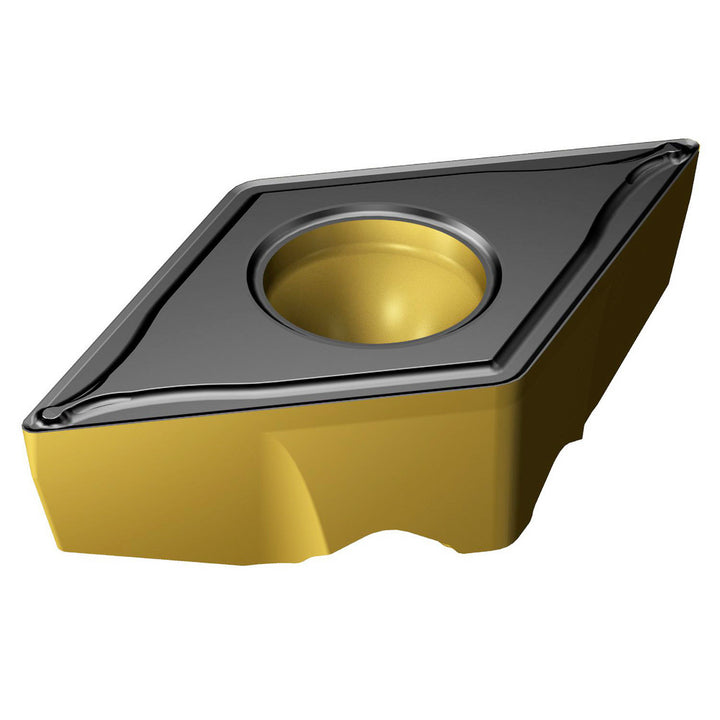

TR-DC1308-F 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860778
MFR# 7860778ISO/ANSI# TR-DC1308-F 4425Cat# TR-DC1308-F 4425Series CoroTurn TR
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860778 is a TR-DC1308-F 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerF
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.1457
Included angle60
Inscribed circle0.1457
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1308
Insert styleTRDC
Insert thickness0.2175
Iso codeTR-DC1308-F 4425
Manufacturers catalog numberTR-DC1308-F 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Wiper edgeNo
