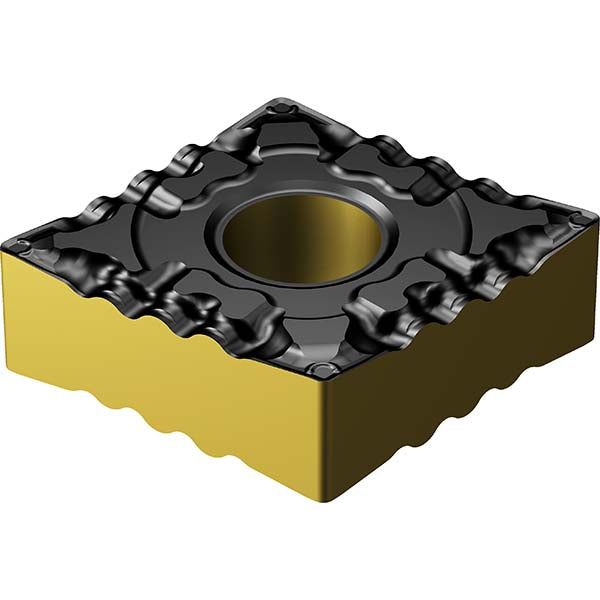

CNMG 09 03 08-PF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860789
MFR# 7860789ISO/ANSI# CNMG 09 03 08-PF 4425Cat# CNMG 322-PF 4425Series T-Max P
$13.90List $17.52
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860789 is a CNMG 09 03 08-PF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code0903
Insert styleCNMG
Insert thickness in1/8
Iso codeCNMG 09 03 08-PF 4425
Manufacturers catalog numberCNMG 322-PF 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
