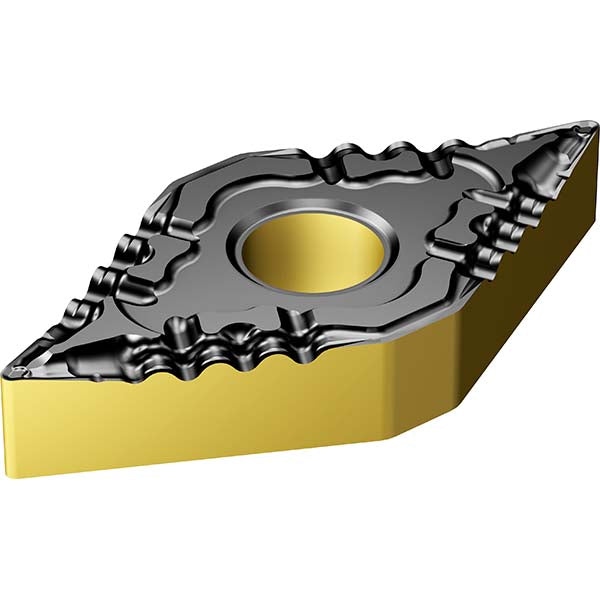

DNMG 15 04 12-PF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860801
MFR# 7860801ISO/ANSI# DNMG150412Cat# DNMG 433-PF 4425Series T-Max P
$26.15List $33.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860801 is a DNMG 15 04 12-PF 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Ansi insert codeDNMG433
Ansi size code433
Chip breakerPF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code1504
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 12-PF 4425
Iso insert codeDNMG150412
Iso size code150412
Manufacturers catalog numberDNMG 433-PF 4425
Manufacturer grade4425
Relief angle0
Side clearanceNegative
Tolerance codeM
