Sandvik Coromant

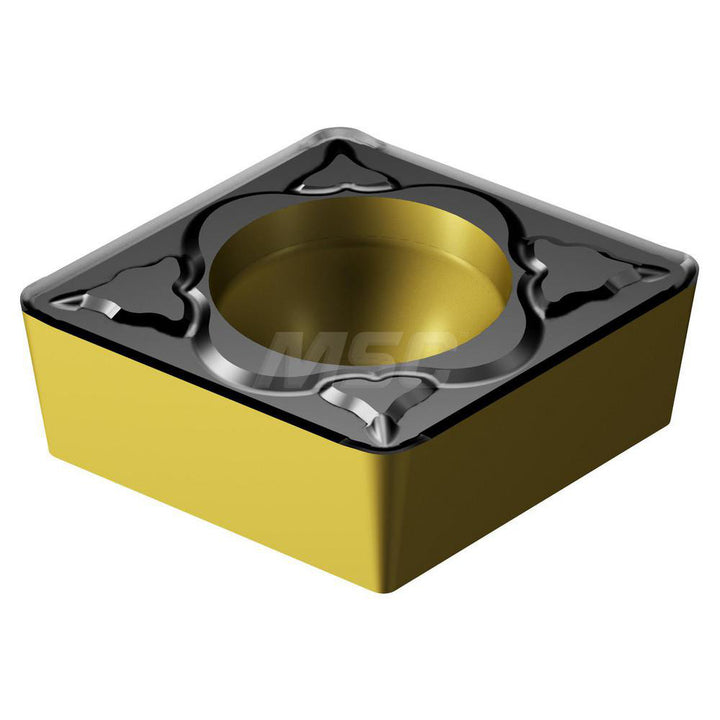

CCMT 12 04 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860814
MFR# 7860814ISO/ANSI# CCMT 12 04 08-PM 4425Cat# CCMT 432-PM 4425Series CoroTurn 107
$23.04List $29.55
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860814 is a CCMT 12 04 08-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.2165
Included angle80
Inscribed circle0.2165
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 08-PM 4425
Manufacturers catalog numberCCMT 432-PM 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
