Sandvik Coromant

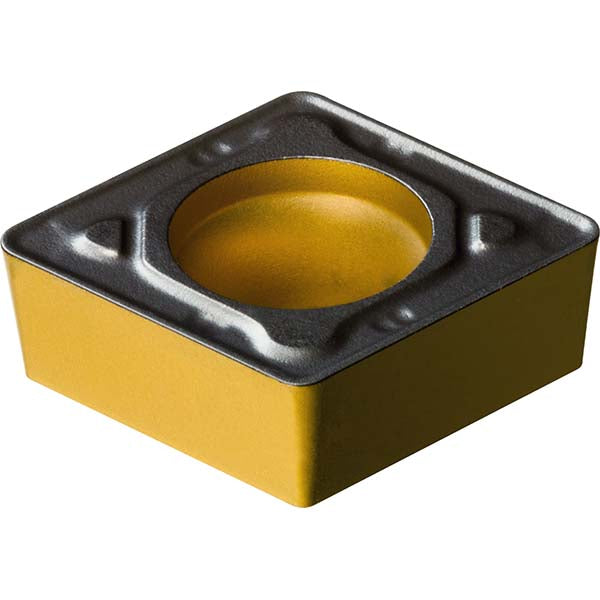

CCMT 12 04 12-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860830
MFR# 7860830ISO/ANSI# CCMT 12 04 12-PR 4425Cat# CCMT 433-PR 4425Series CoroTurn 107
$24.88List $31.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860830 is a CCMT 12 04 12-PR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 12-PR 4425
Manufacturers catalog numberCCMT 433-PR 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
