Sandvik Coromant

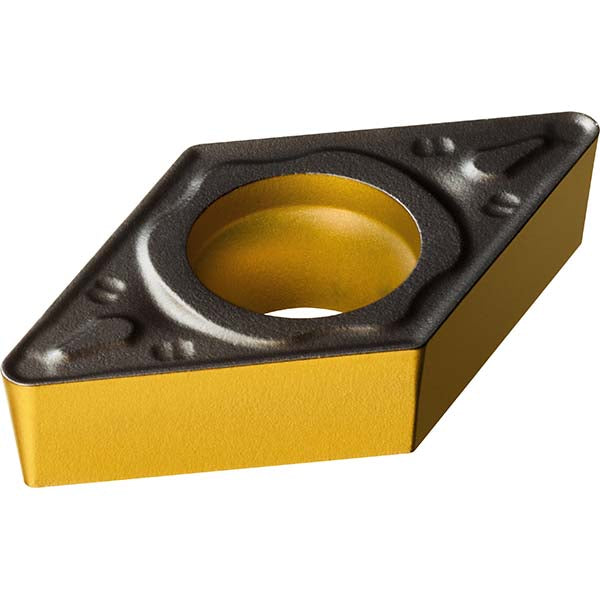

DCMT 11 T3 12-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860832
MFR# 7860832ISO/ANSI# DCMT11T312Cat# DCMT 3(2.5)3-PR 4425Series CoroTurn 107
$19.06List $24.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860832 is a DCMT 11 T3 12-PR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeDCMT
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code11T3
Insert styleDCMT
Insert thickness0.1563
Iso codeDCMT 11 T3 12-PR 4425
Iso insert codeDCMT11T312
Iso size code11T312
Manufacturers catalog numberDCMT 3(2.5)3-PR 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
