Sandvik Coromant

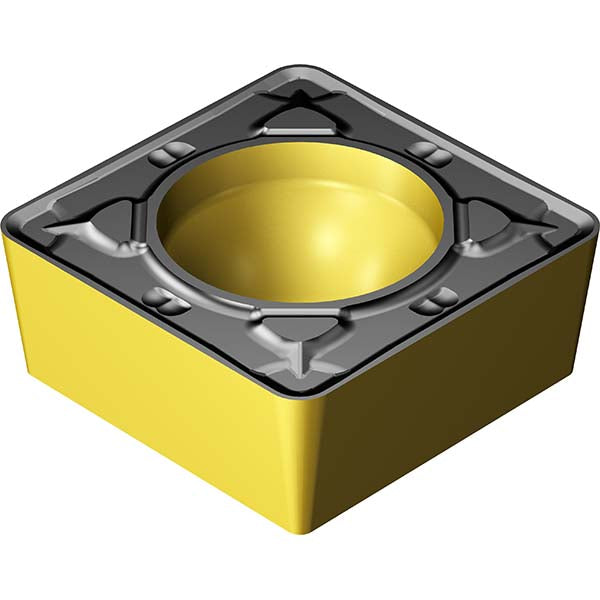

SCMT 12 04 08-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860835
MFR# 7860835ISO/ANSI# SCMT 12 04 08-PR 4425Cat# SCMT 432-PR 4425Series CoroTurn 107
$20.97List $26.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860835 is a SCMT 12 04 08-PR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.2165
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1204
Insert styleSCMT
Insert thickness in3/16
Iso codeSCMT 12 04 08-PR 4425
Manufacturers catalog numberSCMT 432-PR 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
