Sandvik Coromant

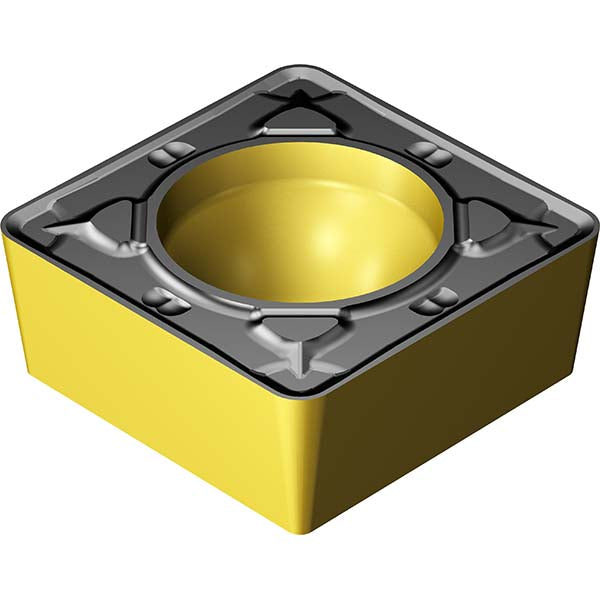

SCMT 12 04 12-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860836
MFR# 7860836ISO/ANSI# SCMT 12 04 12-PR 4425Cat# SCMT 433-PR 4425Series CoroTurn 107
$23.05List $29.05
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860836 is a SCMT 12 04 12-PR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Hole diameter0.2165
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1204
Insert styleSCMT
Insert thickness in3/16
Iso codeSCMT 12 04 12-PR 4425
Manufacturers catalog numberSCMT 433-PR 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
