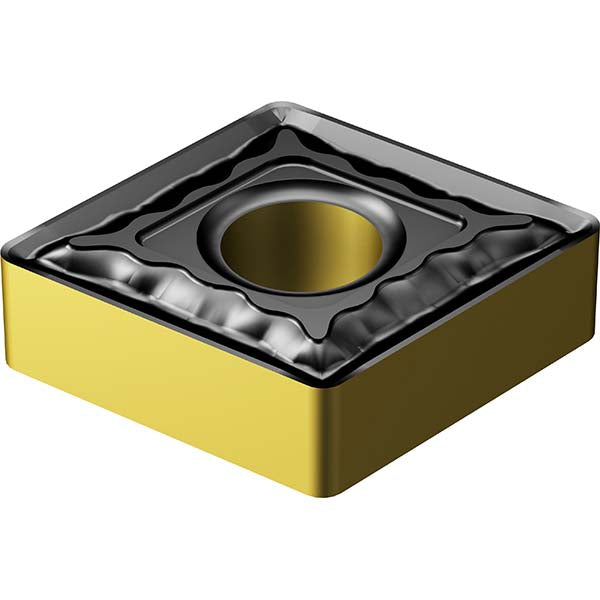

CNMG 09 03 08-QM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860838
MFR# 7860838ISO/ANSI# CNMG 09 03 08-QM 4425Cat# CNMG 322-QM 4425Series T-Max P
$13.80List $17.39
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860838 is a CNMG 09 03 08-QM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code0903
Insert styleCNMG
Insert thickness in1/8
Iso codeCNMG 09 03 08-QM 4425
Manufacturers catalog numberCNMG 322-QM 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
