Sandvik Coromant

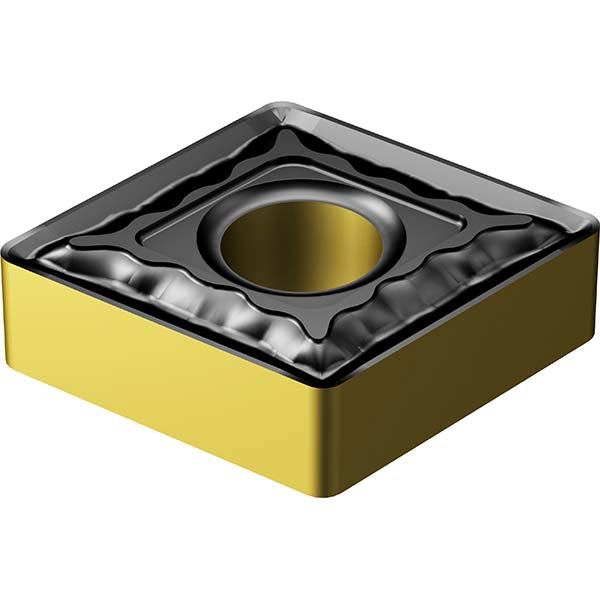

CNMG 16 06 16-QM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860846
MFR# 7860846ISO/ANSI# CNMG 16 06 16-QM 4425Cat# CNMG 544-QM 4425Series T-Max P
$32.71List $41.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860846 is a CNMG 16 06 16-QM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1606
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 16-QM 4425
Manufacturers catalog numberCNMG 544-QM 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
