SNMG 19 06 12-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7860860

MFR# 7860860ISO/ANSI# SNMG 19 06 12-QM 4425Cat# SNMG 643-QMSeries T-Max P

$46.53List $58.64 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeSquare
Grade4425
MaterialCarbide
CoatingAl2O3

Description

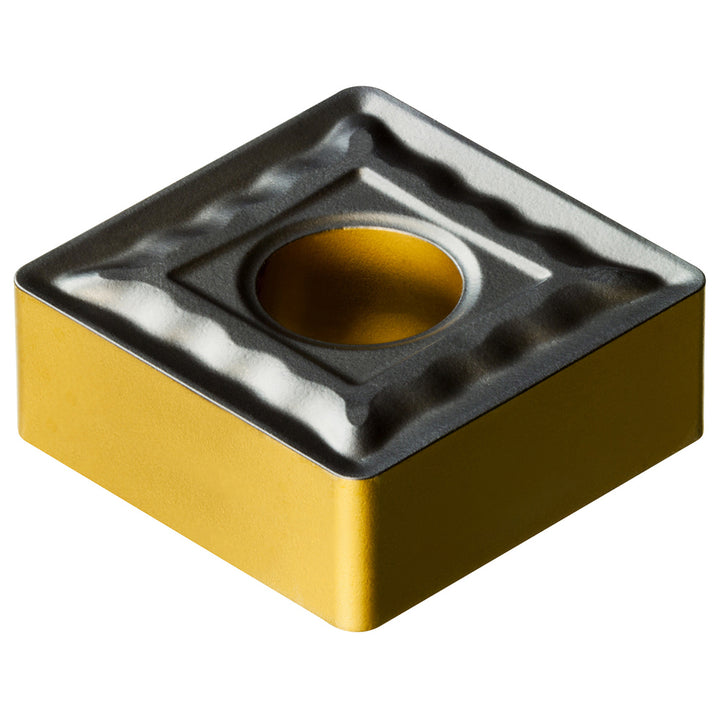

The Sandvik Coromant 7860860 is a SNMG 19 06 12-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.

Specifications

Chip breakerQM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Hole diameter0.3120
Industry standard numberSNMG 19 06 12-QM 4425
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1906
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 12-QM 4425
Manufacturers catalog numberSNMG 643-QM
Manufacturer grade4425
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
