Sandvik Coromant

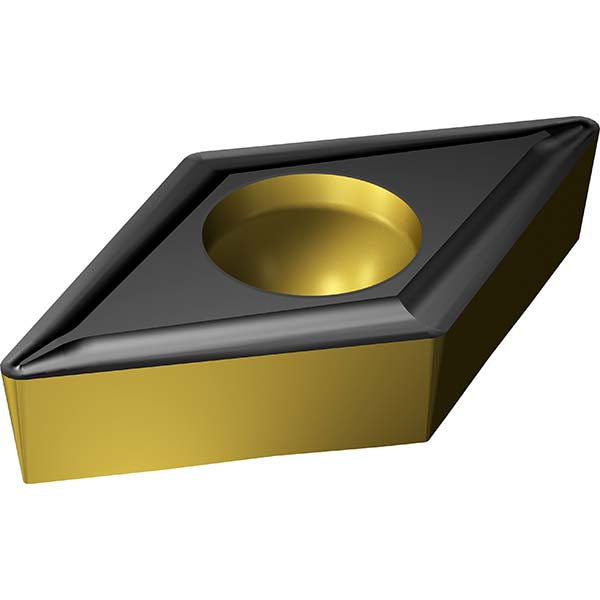

DCMT 11 T3 04-UF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860863
MFR# 7860863ISO/ANSI# DCMT11T304Cat# DCMT 3(2.5)1-UF 4425Series CoroTurn 107
$20.59List $26.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860863 is a DCMT 11 T3 04-UF 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Ansi insert codeDCMT32.51
Ansi size code32.51
Chip breakerUF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code11T3
Insert styleDCMT
Insert thickness0.1563
Iso codeDCMT 11 T3 04-UF 4425
Iso insert codeDCMT11T304
Iso size code11T304
Manufacturers catalog numberDCMT 3(2.5)1-UF 4425
Manufacturer grade4425
Relief angle7
Side clearancePositive
Tolerance codeM
