Sandvik Coromant

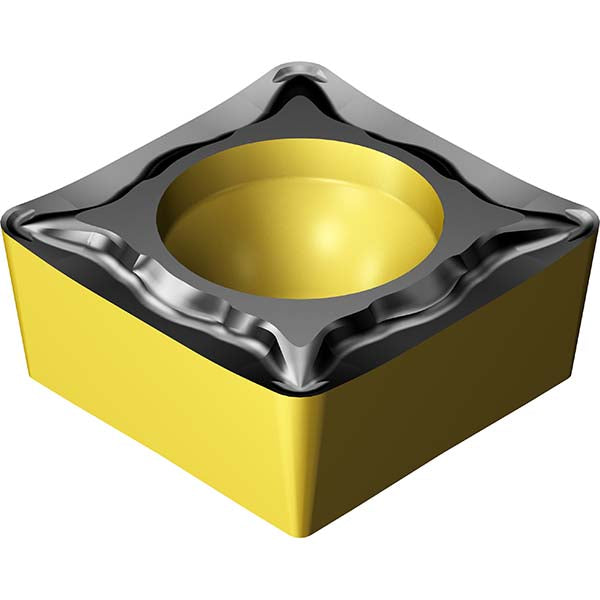

SCMT 12 04 12-UM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860875
MFR# 7860875ISO/ANSI# SCMT 12 04 12-UM 4425Cat# SCMT 433-UM 4425Series CoroTurn 107
$22.65List $29.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860875 is a SCMT 12 04 12-UM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1204
Insert styleSCMT
Insert thickness in3/16
Iso codeSCMT 12 04 12-UM 4425
Manufacturers catalog numberSCMT 433-UM 4425
Manufacturer grade4425
Relief angle7
Tolerance codeM
