Sandvik Coromant

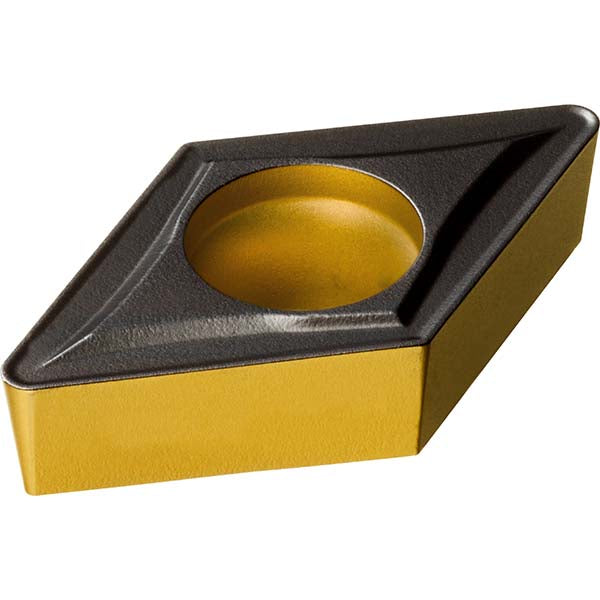

DCMT 11 T3 04-UR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860879
MFR# 7860879ISO/ANSI# DCMT11T304Cat# DCMT 3(2.5)1-UR 4425Series CoroTurn 107
$20.95List $26.41
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860879 is a DCMT 11 T3 04-UR 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Ansi insert codeDCMT32.51
Ansi size code32.51
Chip breakerUR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code11T3
Insert styleDCMT
Insert thickness0.1563
Iso codeDCMT 11 T3 04-UR 4425
Iso insert codeDCMT11T304
Iso size code11T304
Manufacturers catalog numberDCMT 3(2.5)1-UR 4425
Manufacturer grade4425
Relief angle7
Side clearancePositive
Tolerance codeM
