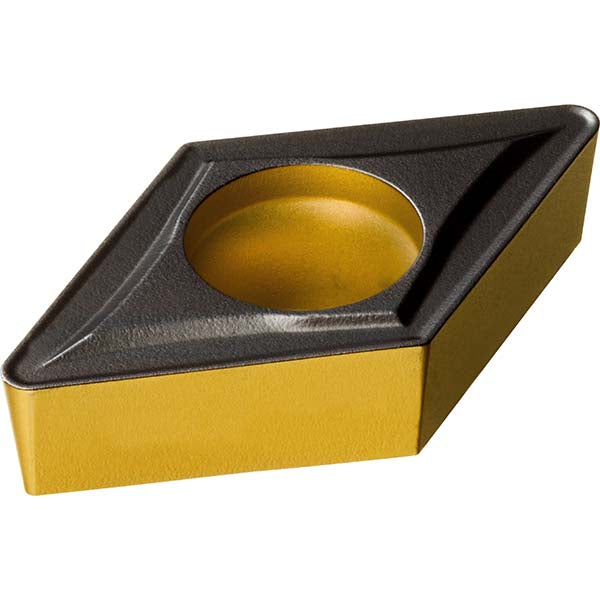

DCMT 11 T3 08-UR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860880
MFR# 7860880ISO/ANSI# DCMT11T308Cat# DCMT 3(2.5)2-UR 4425Series CoroTurn 107
$19.06List $24.45
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860880 is a DCMT 11 T3 08-UR 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Ansi insert codeDCMT32.52
Ansi size code32.52
Chip breakerUR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code11T3
Insert styleDCMT
Insert thickness0.1563
Iso codeDCMT 11 T3 08-UR 4425
Iso insert codeDCMT11T308
Iso size code11T308
Manufacturers catalog numberDCMT 3(2.5)2-UR 4425
Manufacturer grade4425
Relief angle7
Side clearancePositive
Tolerance codeM
