Sandvik Coromant

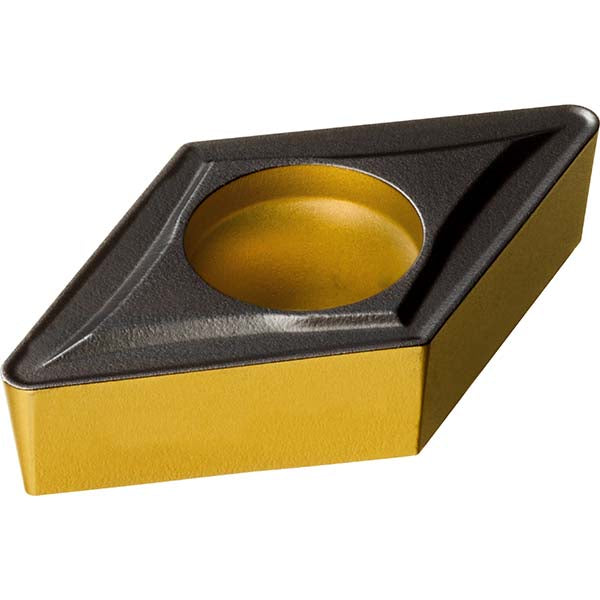

DCMT 11 T3 12-UR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860881
MFR# 7860881ISO/ANSI# DCMT 11 T3 12-UR 4425Cat# DCMT 3(2.5)3-UR 4425Series CoroTurn 107
$19.72List $24.86
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860881 is a DCMT 11 T3 12-UR 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code11T3
Insert styleDCMT
Insert thickness0.1563
Iso codeDCMT 11 T3 12-UR 4425
Manufacturers catalog numberDCMT 3(2.5)3-UR 4425
Manufacturer grade4425
Relief angle7
Tolerance codeM
