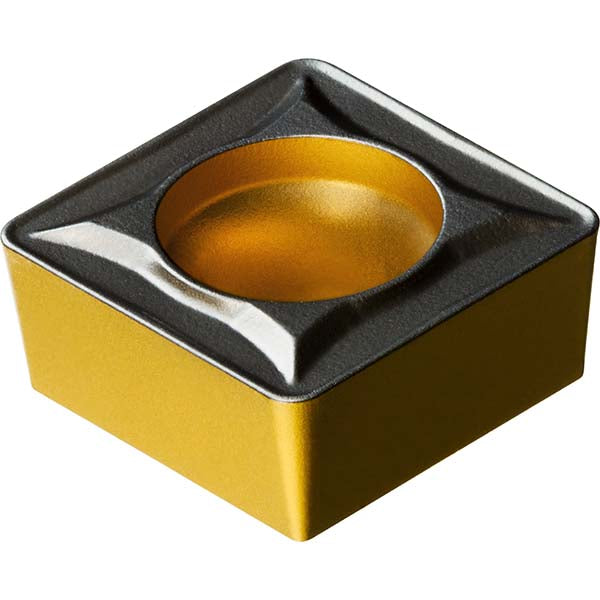

SCMT 09 T3 08-UR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860882
MFR# 7860882ISO/ANSI# SCMT 09 T3 08-UR 4425Cat# SCMT 3(2.5)2-UR 4425Series CoroTurn 107
$16.49List $21.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860882 is a SCMT 09 T3 08-UR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerUR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.1732
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code09T3
Insert styleSCMT
Insert thickness0.1563
Iso codeSCMT 09 T3 08-UR 4425
Manufacturers catalog numberSCMT 3(2.5)2-UR 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
