Sandvik Coromant

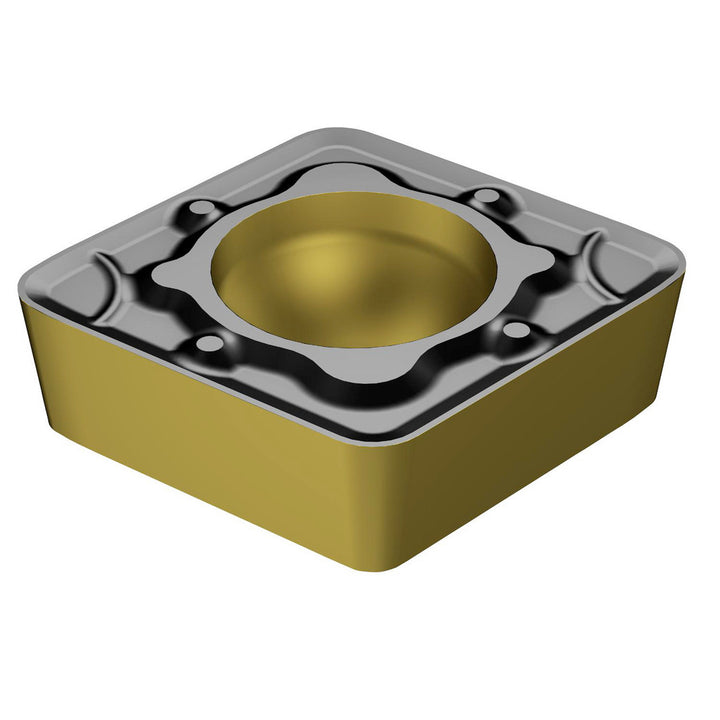

CCMT 06 02 08-WM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860894
MFR# 7860894ISO/ANSI# CCMT 06 02 08-WM 4425Cat# CCMT 2(1.5)2-WM 4425Series CoroTurn 107
$17.59List $22.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860894 is a CCMT 06 02 08-WM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerWM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.1102
Included angle80
Inscribed circle0.1102
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code0602
Insert styleCCMT
Insert thickness0.0938
Iso codeCCMT 06 02 08-WM 4425
Manufacturers catalog numberCCMT 2(1.5)2-WM 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
