Sandvik Coromant

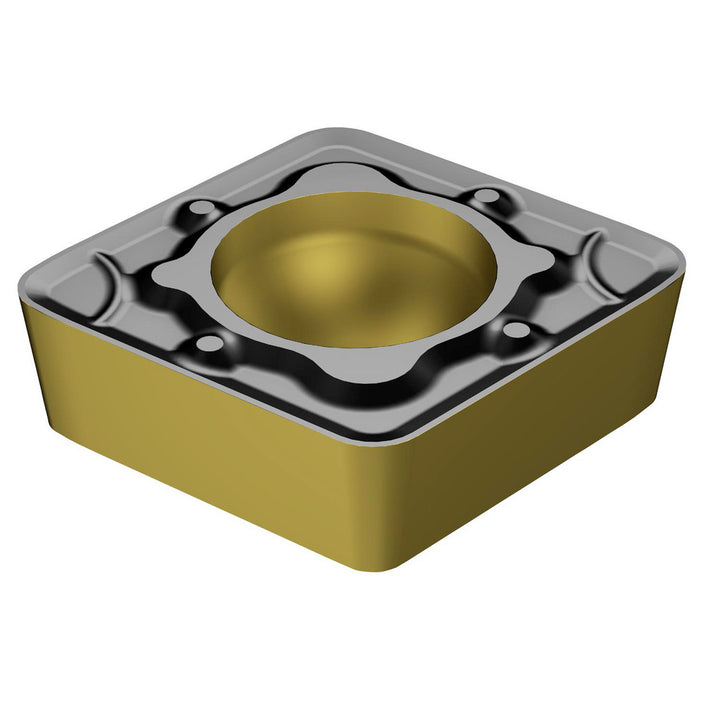

CCMT 09 T3 04-WM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860895
MFR# 7860895ISO/ANSI# CCMT09T304Cat# CCMT 3(2.5)1-WM 4425Series CoroTurn 107
$20.87List $26.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeC - Diamond (Rhombic) 80-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860895 is a CCMT 09 T3 04-WM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerWM
Chip breaker operationWiper - Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle0.3750
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code09T3
Insert styleCCMT
Insert thickness0.1563
Iso codeCCMT 09 T3 04-WM 4425
Iso insert codeCCMT09T304
Iso size code09T304
Manufacturers catalog numberCCMT 3(2.5)1-WM 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeYes
