Sandvik Coromant

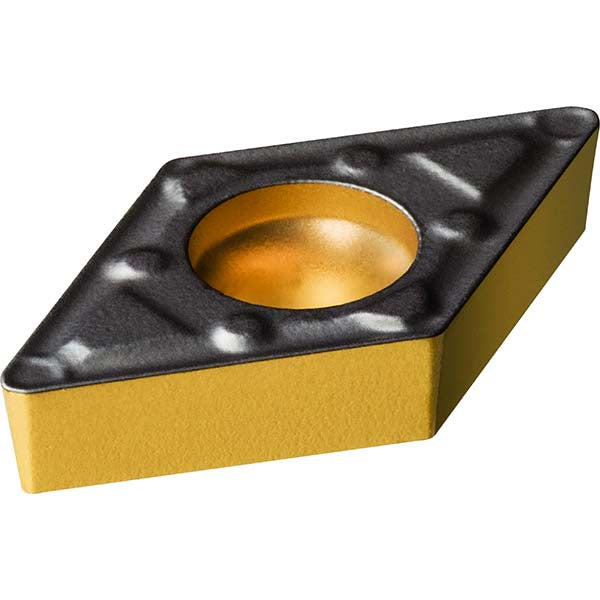

DCMX 07 02 04-WF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860907
MFR# 7860907ISO/ANSI# DCMX 07 02 04-WF 4425Cat# DCMX 2(1.5)1-WF 4425Series CoroTurn 107
$15.83List $20.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860907 is a DCMX 07 02 04-WF 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerX
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code0702
Insert styleDCMX
Insert thickness0.0938
Iso codeDCMX 07 02 04-WF 4425
Manufacturers catalog numberDCMX 2(1.5)1-WF 4425
Manufacturer grade4425
Relief angle7
Tolerance codeM
