Sandvik Coromant

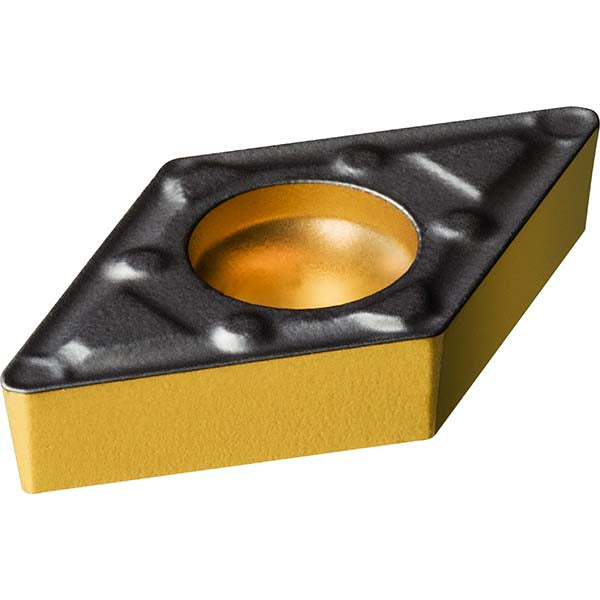

DCMX 11 T3 08-WF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860910
MFR# 7860910ISO/ANSI# DCMX 11 T3 08-WF 4425Cat# DCMX 3(2.5)2-WF 4425Series CoroTurn 107
$22.66List $28.56
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860910 is a DCMX 11 T3 08-WF 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerX
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code11T3
Insert styleDCMX
Insert thickness0.1563
Iso codeDCMX 11 T3 08-WF 4425
Manufacturers catalog numberDCMX 3(2.5)2-WF 4425
Manufacturer grade4425
Relief angle7
Tolerance codeM
