Sandvik Coromant

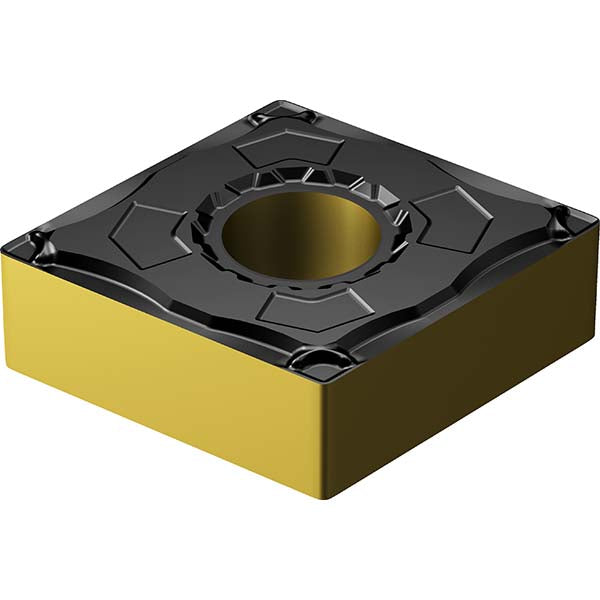

CNMG 12 04 04-LC 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860915
MFR# 7860915ISO/ANSI# CNMG 12 04 04-LC 4425Cat# CNMG 431-LC 4425Series T-Max P
$20.67List $26.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860915 is a CNMG 12 04 04-LC 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 04-LC 4425
Manufacturers catalog numberCNMG 431-LC 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
