Sandvik Coromant
DNMG 11 04 08-LC 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860917
MFR# 7860917ISO/ANSI# DNMG 11 04 08-LC 4425Cat# DNMG 332-LC 4425Series T-Max P
$20.06List $25.27
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description

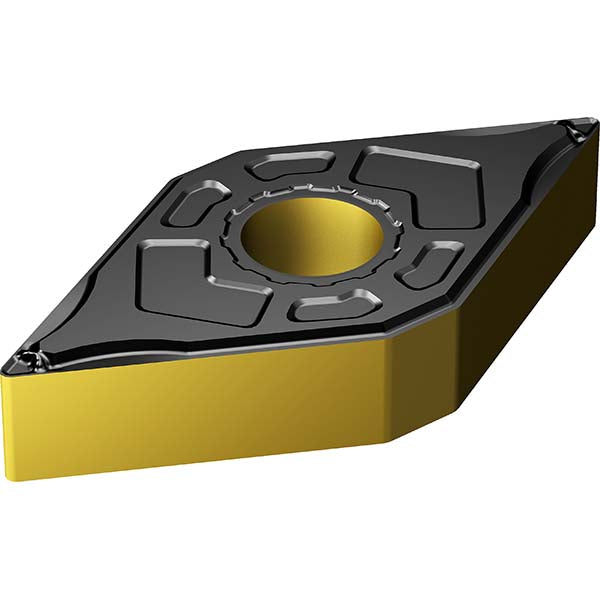

The Sandvik Coromant 7860917 is a DNMG 11 04 08-LC 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1104
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 08-LC 4425
Manufacturers catalog numberDNMG 332-LC 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
