Sandvik Coromant

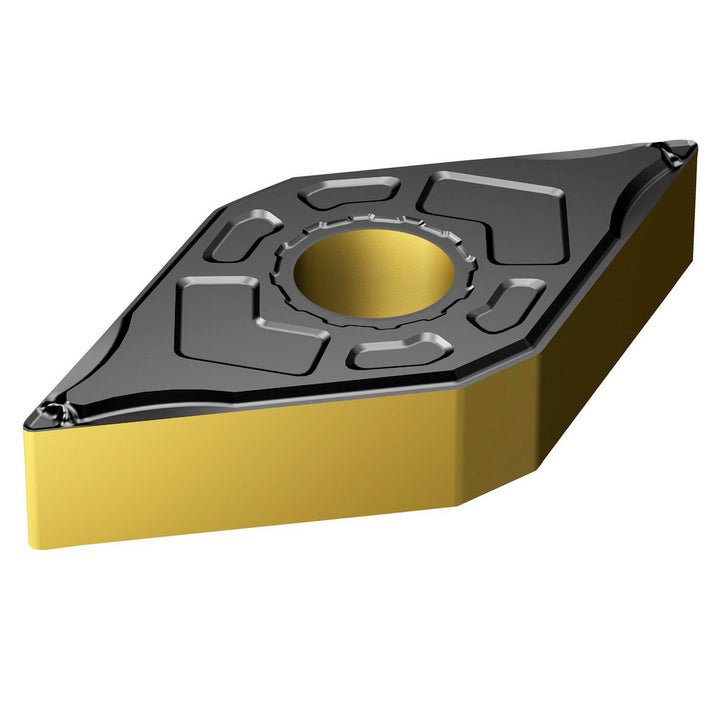

DNMG 15 04 08-LC 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860919
MFR# 7860919ISO/ANSI# DNMG 15 04 08-LC 4425Cat# DNMG 432-LC 4425Series T-Max P
$26.15List $33.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860919 is a DNMG 15 04 08-LC 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerLC
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.2030
Included angle55
Inscribed circle0.2030
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1504
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 08-LC 4425
Manufacturers catalog numberDNMG 432-LC 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeNo
