Sandvik Coromant

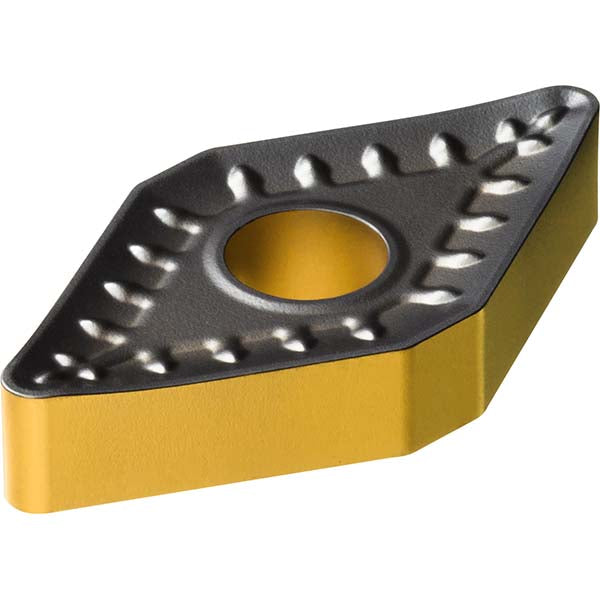

DNMM 15 06 12-QR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860931
MFR# 7860931ISO/ANSI# DNMM 15 06 12-QR 4425Cat# DNMM 443-QR 4425Series T-Max P
$26.72List $34.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860931 is a DNMM 15 06 12-QR 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1506
Insert styleDNMM
Insert thickness in1/4
Iso codeDNMM 15 06 12-QR 4425
Manufacturers catalog numberDNMM 443-QR 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
