Sandvik Coromant
DNMX 15 06 12-WM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860942
MFR# 7860942ISO/ANSI# DNMX 15 06 12-WM 4425Cat# DNMX 443-WM 4425Series T-Max P
$32.94List $42.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description

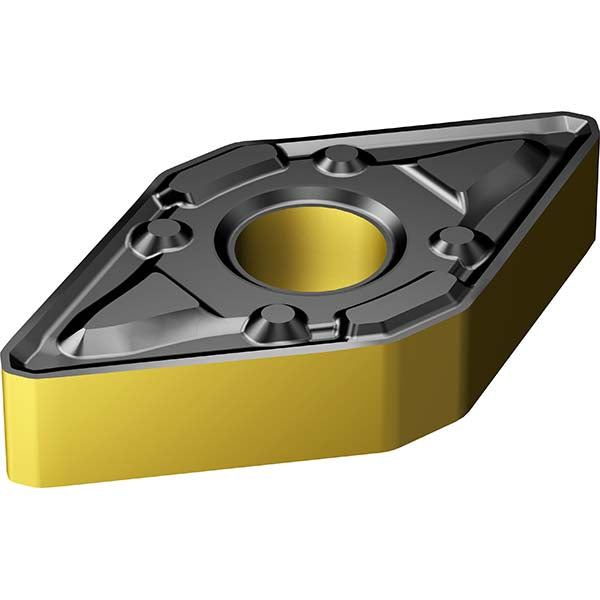

The Sandvik Coromant 7860942 is a DNMX 15 06 12-WM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1506
Insert styleDNMX
Insert thickness in1/4
Iso codeDNMX 15 06 12-WM 4425
Manufacturers catalog numberDNMX 443-WM 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
