Sandvik Coromant
DNMG 15 06 08-XM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860959
MFR# 7860959ISO/ANSI# DNMG 15 06 08-XM 4425Cat# DNMG 442-XM 4425Series T-Max P
$28.46List $36.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description

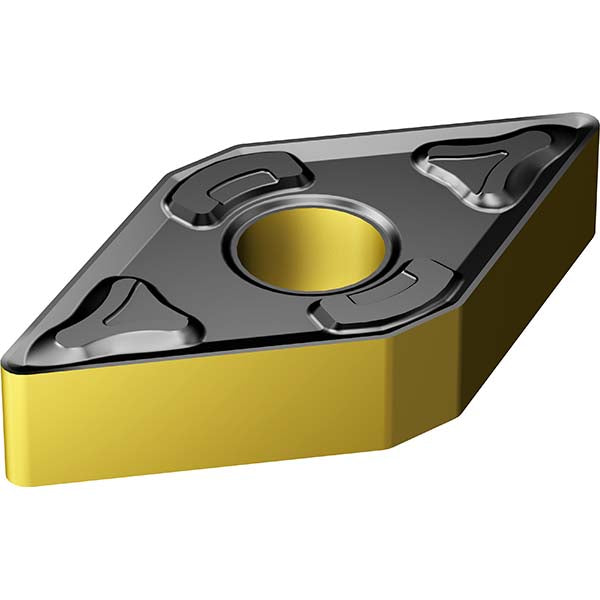

The Sandvik Coromant 7860959 is a DNMG 15 06 08-XM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1506
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 08-XM 4425
Manufacturers catalog numberDNMG 442-XM 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
