Sandvik Coromant

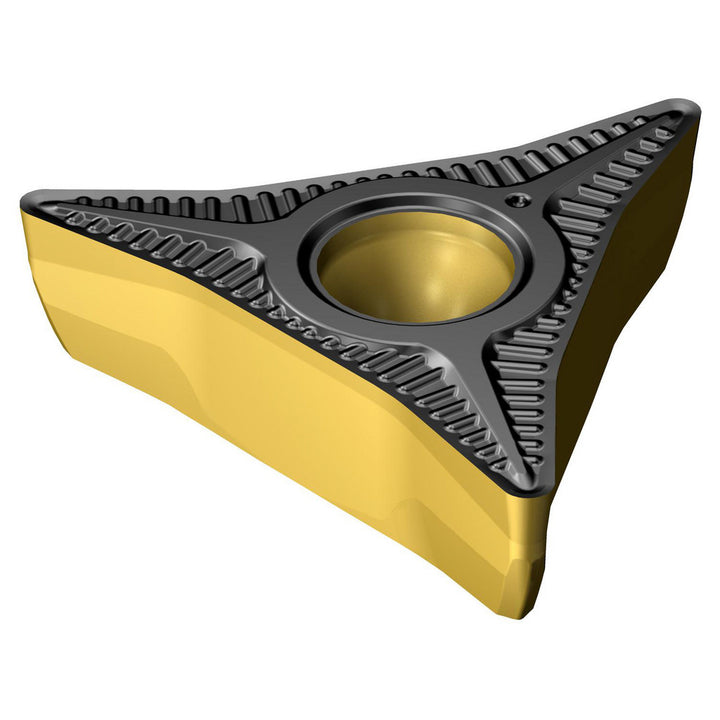

CP-A1108-L5 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860966
MFR# 7860966ISO/ANSI# CP-A1108-L5 4425Cat# CP-A1108-L5 4425Series CoroTurn Prime
$35.43List $38.70
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860966 is a CP-A1108-L5 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerL5
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.1457
Inscribed circle0.1457
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code11
Insert styleCPA
Insert thickness0.2362
Iso codeCP-A1108-L5 4425
Manufacturers catalog numberCP-A1108-L5 4425
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle6
Secondary workpiece materialCast Iron
Wiper edgeNo
