Sandvik Coromant

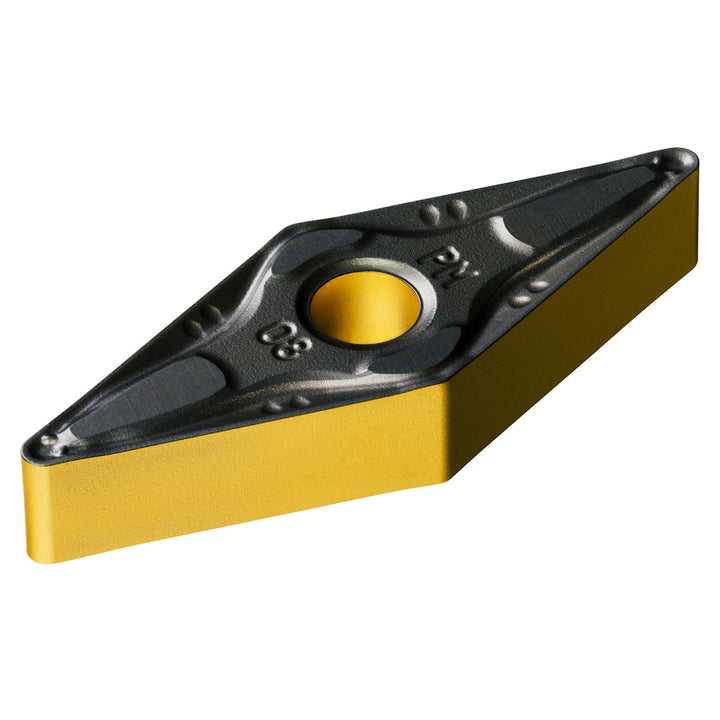

VNMG 16 04 12-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7860995
MFR# 7860995ISO/ANSI# VNMG 16 04 12-PM 4425Cat# VNMG 333-PMSeries T-Max P
$34.89List $44.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860995 is a VNMG 16 04 12-PM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Hole diameter0.1500
Included angle35
Industry standard numberVNMG 16 04 12-PM 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1604
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 12-PM 4425
Manufacturers catalog numberVNMG 333-PM
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
