Sandvik Coromant

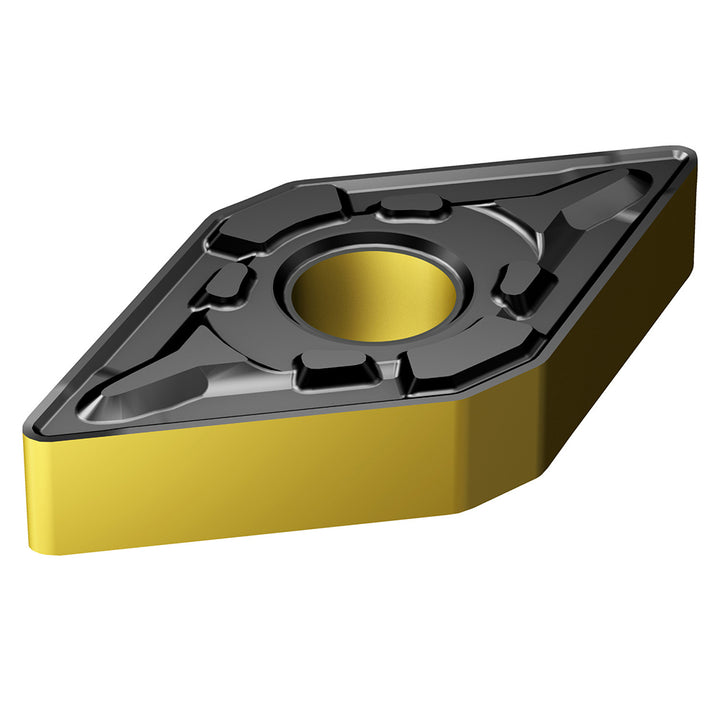

DNMG 19 06 12-PR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7860997
MFR# 7860997ISO/ANSI# DNMG 19 06 12-PR 4425Cat# DNMG 543-PRSeries T-Max P
$39.83List $51.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860997 is a DNMG 19 06 12-PR 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Hole diameter0.2500
Included angle55
Industry standard numberDNMG 19 06 12-PR 4425
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1906
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 19 06 12-PR 4425
Manufacturers catalog numberDNMG 543-PR
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
