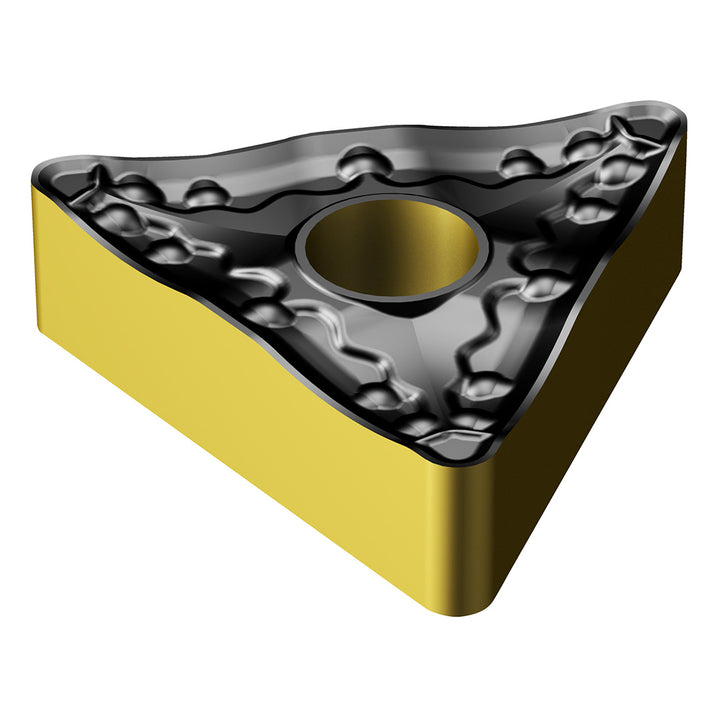

TNMM 16 04 12-PR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861002
MFR# 7861002ISO/ANSI# TNMM 16 04 12-PR 4425Cat# TNMM 333-PRSeries T-Max P
$17.03List $21.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861002 is a TNMM 16 04 12-PR 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle60
Industry standard numberTNMM 16 04 12-PR 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code160412
Insert styleTNMM
Insert thickness in3/16
Iso codeTNMM 16 04 12-PR 4425
Manufacturers catalog numberTNMM 333-PR
Manufacturer grade4425
Relief angle0
Tolerance codeM
