Sandvik Coromant

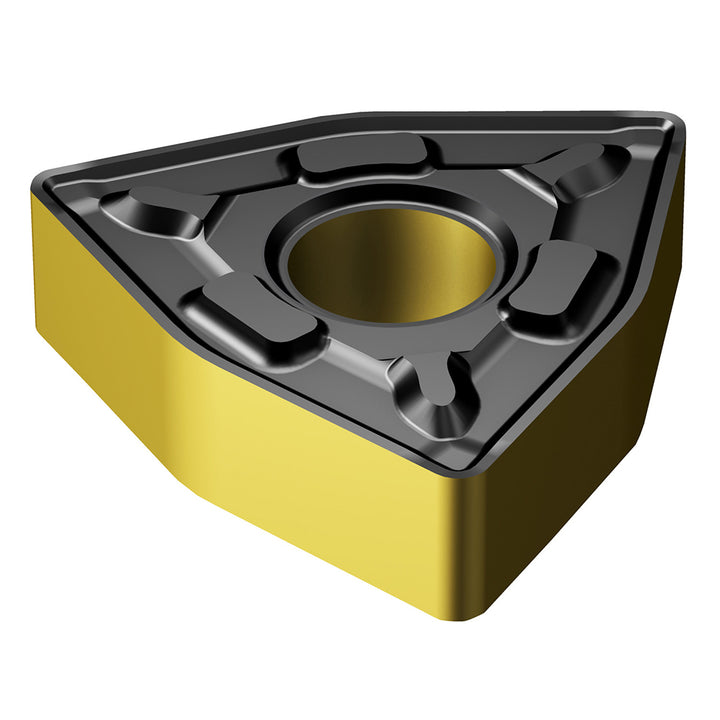

WNMG 06 04 08-PR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861003
MFR# 7861003ISO/ANSI# WNMG 06 04 08-PR 4425Cat# WNMG 332-PRSeries T-Max P
$17.10List $21.55
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861003 is a WNMG 06 04 08-PR 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle80
Industry standard numberWNMG 06 04 08-PR 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code0604
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 08-PR 4425
Manufacturers catalog numberWNMG 332-PR
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
