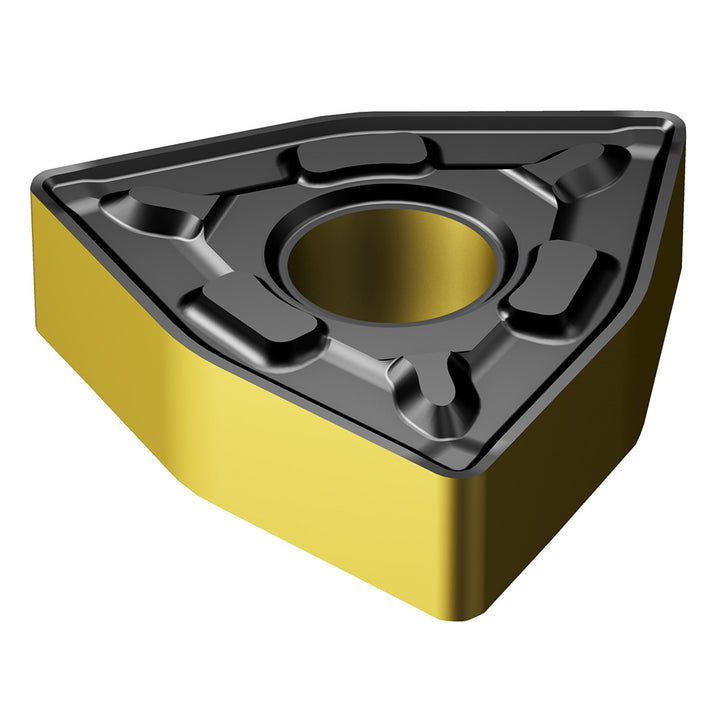

WNMG 08 04 16-PR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861007
MFR# 7861007ISO/ANSI# WNMG 08 04 16-PR 4425Cat# WNMG 434-PRSeries T-Max P
$19.03List $24.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861007 is a WNMG 08 04 16-PR 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Hole diameter0.2030
Included angle80
Industry standard numberWNMG 08 04 16-PR 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 16-PR 4425
Manufacturers catalog numberWNMG 434-PR
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
