Sandvik Coromant

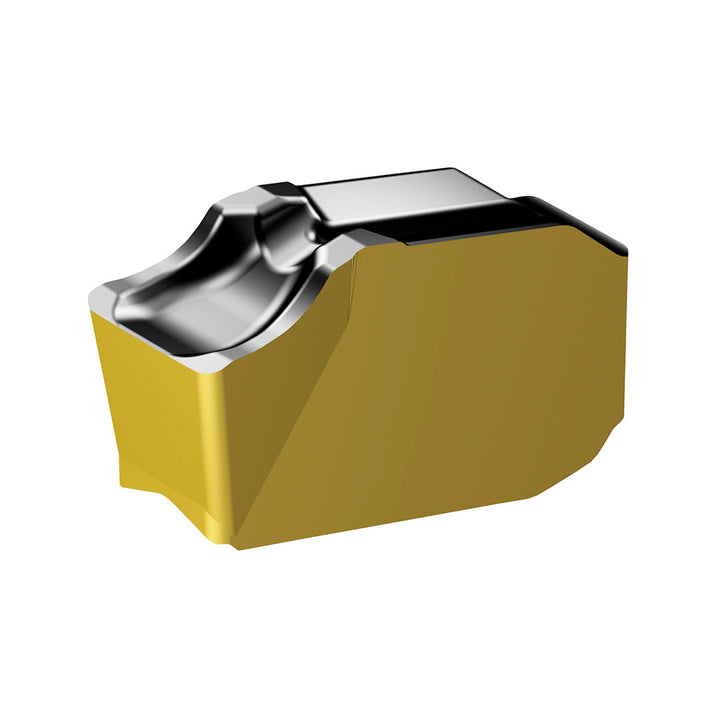

QD-NH-0400-0003-CR 4425 HC Insert, Grade 4425, TiCN/Al2O3/TiN - Sandvik Coromant 7861026
MFR# 7861026ISO/ANSI# QD-NH-0400-0003-CR 4425Cat# QD-NH-0400-0003-CR 4425Series CoroCut QD
$27.62List $35.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4425
MaterialHC
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 7861026 is a QD-NH-0400-0003-CR 4425 hc indexable insert, grade 4425, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCR
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0118
Cutting directionNeutral
Cutting width0.1570
Insert handNeutral
Insert materialHC
Insert size codeH
Insert styleQD-N
Iso codeQD-NH-0400-0003-CR 4425
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberQD-NH-0400-0003-CR 4425
Manufacturer grade4425
Relief angle7.00
