Sandvik Coromant

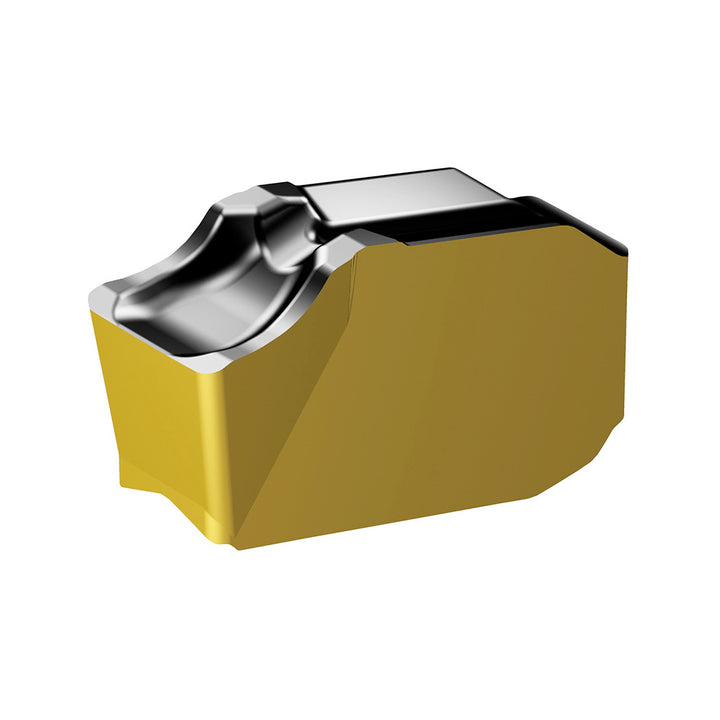

QD-NK-0600-0004-CR 4425 HC Insert, Grade 4425, TiCN/Al2O3/TiN - Sandvik Coromant 7861031
MFR# 7861031ISO/ANSI# QD-NK-0600-0004-CR 4425Cat# QD-NK-0600-0004-CR 4425Series CoroCut QD
$30.35List $38.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4425
MaterialHC
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 7861031 is a QD-NK-0600-0004-CR 4425 hc indexable insert, grade 4425, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCR
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0157
Cutting directionNeutral
Cutting width0.2362
Insert handNeutral
Insert materialHC
Insert size codeK
Insert styleQD-N
Iso codeQD-NK-0600-0004-CR 4425
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberQD-NK-0600-0004-CR 4425
Manufacturer grade4425
Relief angle7.00
